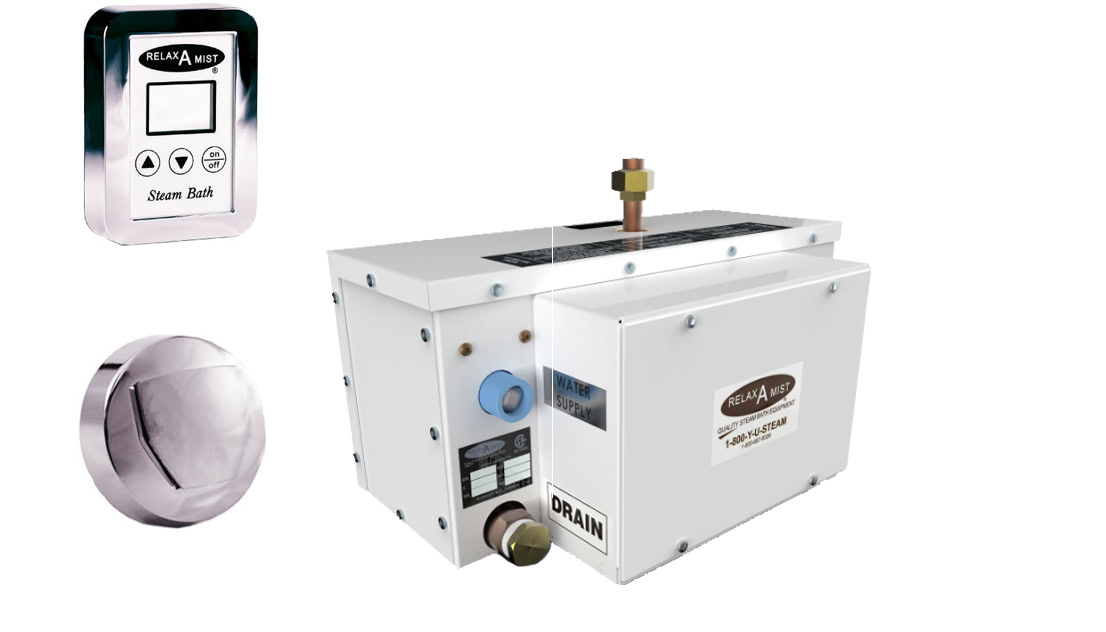

RELAX-A-MIST STEAM GENERATOR JR1 – 3KW 240V QUICK TOUCH TIMER AND STEAM DIFFUSER

JR1 MODEL : 90 Cubic Feet

STEAM GENERATOR SELECTION
To select the correct size of steam generator, add the cubic footage of the shower with the appropriate adjustment to determine the calculated cubic footage:
1.  Length x Width x Height = CUBIC FOOTAGE.  Do not deduct for seati ng.
2.  Add appropriate adjustment to account for heat loss through materials:
Acrylic or Fiberglass ……………………………………………………No adjustment Ceramic Tile, ¼” thick, or Cultured Marble ……………………………….+   30% Ceramic Tile,  ⅜” thick or thicker …………………………………………….+ 100% Glass or Glass Block wall ………………………………………………………..+   15% Natural Stone or ½” thick material ………………………………………….+ 100% Steam lines over 25 feet (insulate heavily) ……………………………….+   25% Cast Iron Tub ………………………………………………………………………..+   25% Exterior walls subject to freezing …………………………………………….+   30%
3.  Select the generator that corresponds to your calculated cubic footage:
Model Number JR-1 JR-2 JR-3 JR-4 Maximum Calculated Cubic Feet 90 175 260 375
4.  Line voltage must be specifi ed when ordering.   1 Phase.  Single family dwellings usually have 240 Volts AC while condominiums usually have 208 Volts AC.
